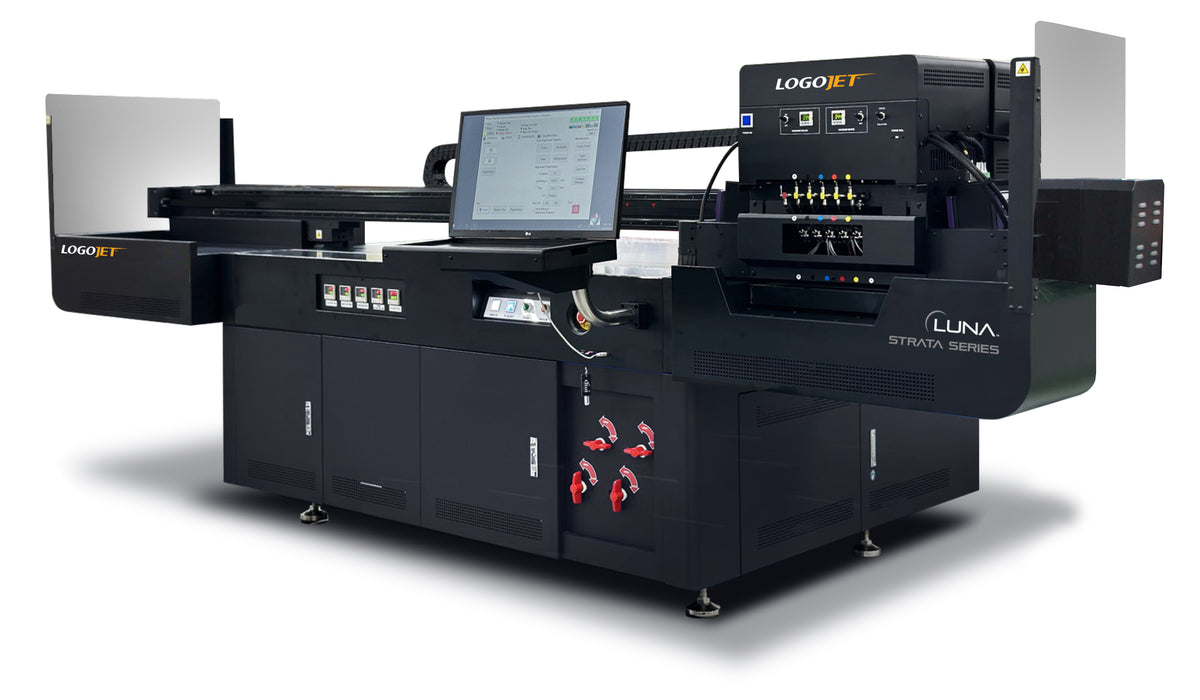

LogoJET Strata Series Large Format UV Flatbed 3.2' x 5.9' - LUNA (includes 2 Ink Sets)
The Future of Wide Format Printing is Here
LogoJET's new STRATA SERIES of Large Format Inkjet Printers is a game-changer for your business.
The LUNA - a state-of-the-art industrial printer - is designed to redefine the industry standards by combining cutting-edge technology with unparalleled durability to boost productivity and deliver exceptional results. Packed with robust features, speeds and reliability you can count on, and backed by LogoJET's 3 year warranty and 5 star support.
Includes 1 Year Wasatch SOFTRIP Subscription with Premium 1 Driver.
Features
Features
3.2’ x 5.9’ (39” x 70”) PRINT AREA
Multiple Ink configurations available
C, M, Y, K, W, W
C, M, Y, K, W, Primer
C, M, Y, K, W, Varnish
C, M, Y, K, LC, LM
Auto White Ink Circulation System
Engineered to stabilize nozzle output and sustain uniform head ink distribution.
Variable Dot Technology
4-level variable dot design ensures consistency without hindering speed, optimized at dot variables of 6, 12, & 18 pl.
Auto head gap-set pin out system
Automatically adjusts to media thickness up to 5.9”

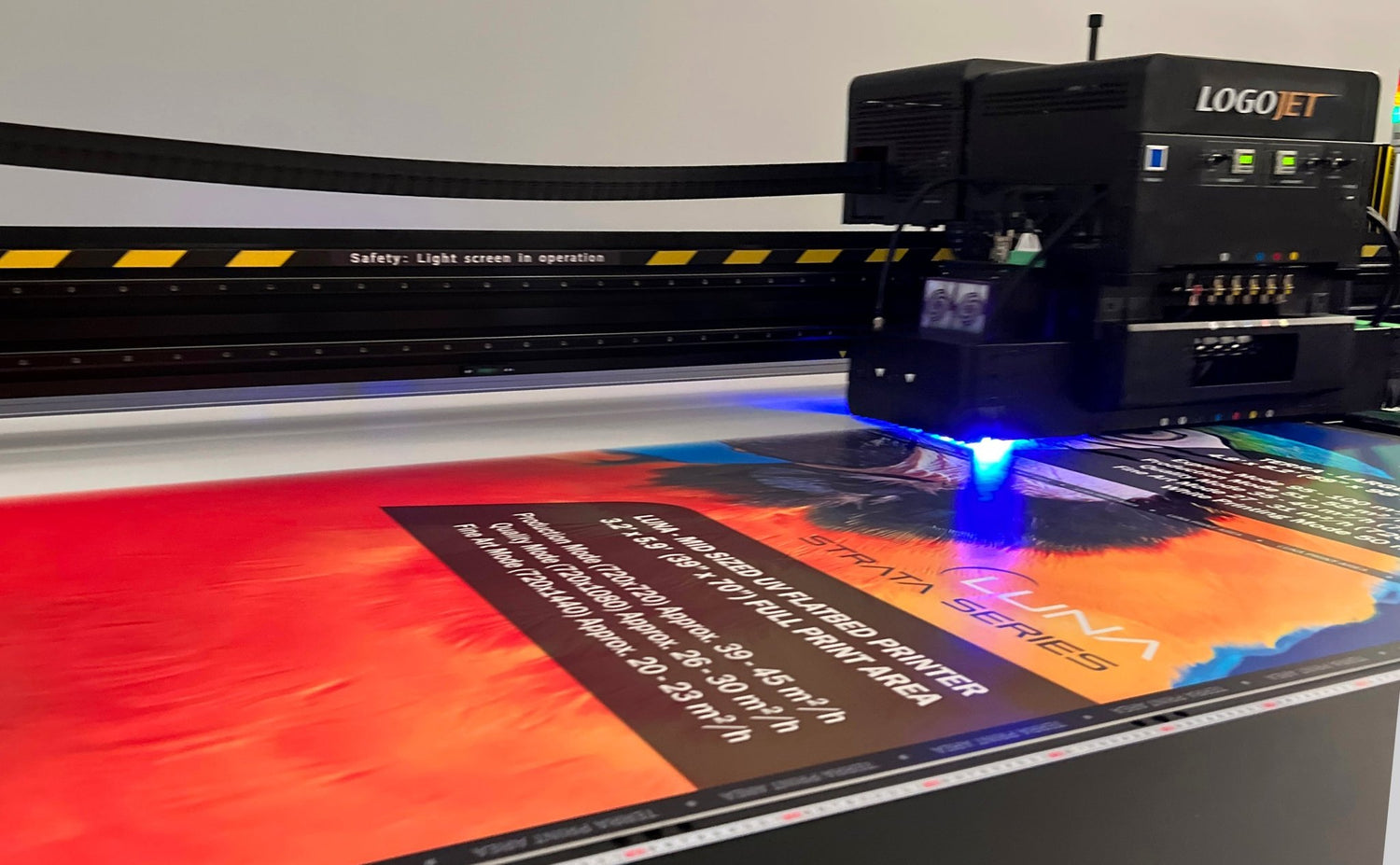

UV Lamps
2 built-in high powered Phoseon UV-LED lamps for high-speed bidirectional printing

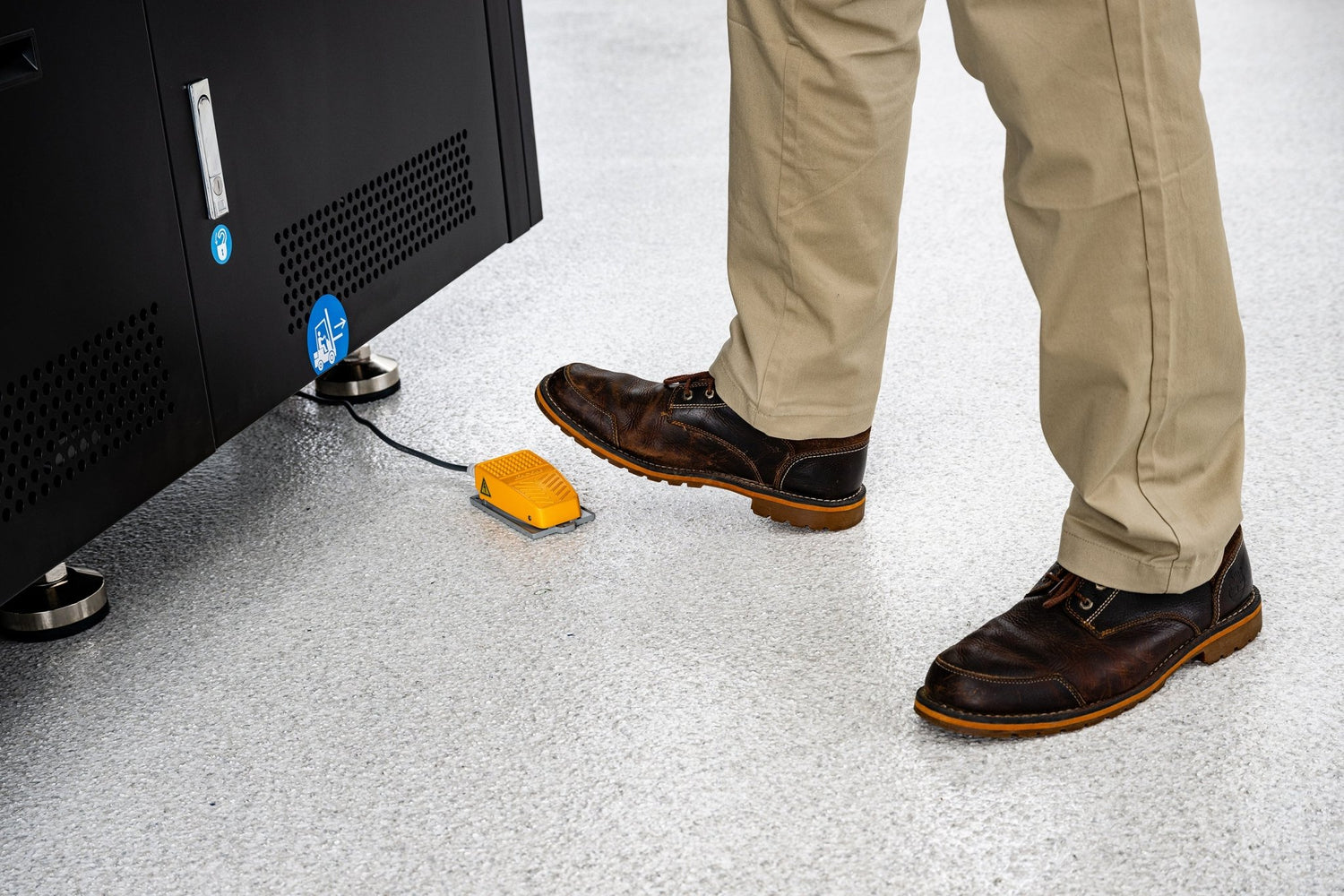

Vacuum Bed

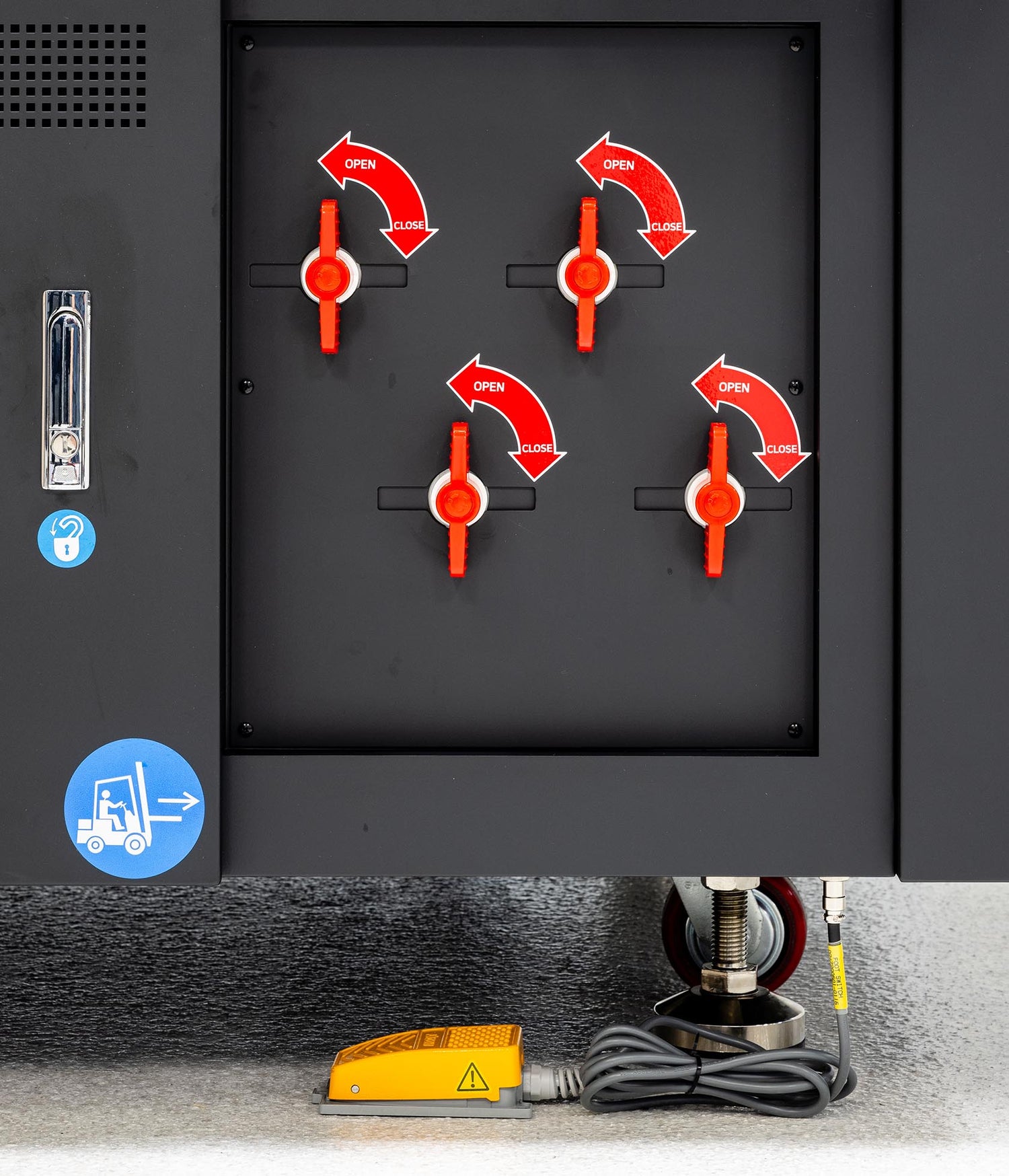

Auto vacuum control system with 4 zones for holding light media and reverse vacuum mode to hover media.
Media Registration
Pneumatic pin-out media set mechanism for precision alignment of materials or jigs
Built-in Ionizer for anti-static
Print head collision prevention system
Software
Software
Includes your choice of LogoJET Edition Wasatch (1 year subscription) or Onyx Thrive License (Level 3 Driver) RIP Software.
Tech Support
Tech Support
LogoJET offers enhanced in-person installation and personalized training for you and your staff with your purchase. We also offer a 3-YEAR WARRANTY to give you peace of mind. We pride ourselves on our top-notch technical support provided by industry experts who can provide troubleshooting and ongoing training for your business.
Features
Gallery
Strata Series Printers Launched at Printing United Expo in 2023
-
What's Included
Each printer is shipped with the following:
2 x 1 liter ink bottles C M Y K
2 x 900 mL ink bottles White
1 x bag of gloves and maintenance syringes
1 x mini supply of lubricants for greasing the rails and tracks
1 x bag – lint free wipes for print head maintenance
1 x printed manual binder
1 x installation USB for drivers and other videos
1 x RIP Software 1 year subscription (Wasatch or Onyx)
1 x anti-static brush
1 x power cable
3-Year limited warranty* (excludes print heads)
-
Specifications
Warranty 3 Year Limited Warranty
Max. Curable Imprint Area 3.2’ L x 5.9’ W (39.3” L x 70.8” W)
Max. Substrate Height 5.9” H
Max. Substrate Weight 132 lbs (6.83 psf)
Machine Size 168” W x 69” L x 58” H
Print Heads Konica Minolta KM1024
Built-in Vacuum Bed 4 zone, 141 CFM
Power Source 220V, 60 Hz - Single Phase, 30A
Compressed Air Requirements 100 psi
Power Consumption 6KW
UV Lamp (2) Specs 2 x 395nm air cooled 16 Watt/cm²
UV LED lamps (Phoseon)Built-in PC Dual-Core i7 Processor, 64 bit, 1TB SDD
8GB RAM, Windows 10Control Panel Touch Screen, built in PC
Interface Ethernet
Optimized Resolution 720x360, 720x720, 720x1080,
720x1440 dpi (uni + bi available)Consumable Parts Print heads, pump, filters for UV lamp
Ink Process (standard) CMYK + 2 custom channels
Ink Type UV LED, Strata LT-1000 Inks

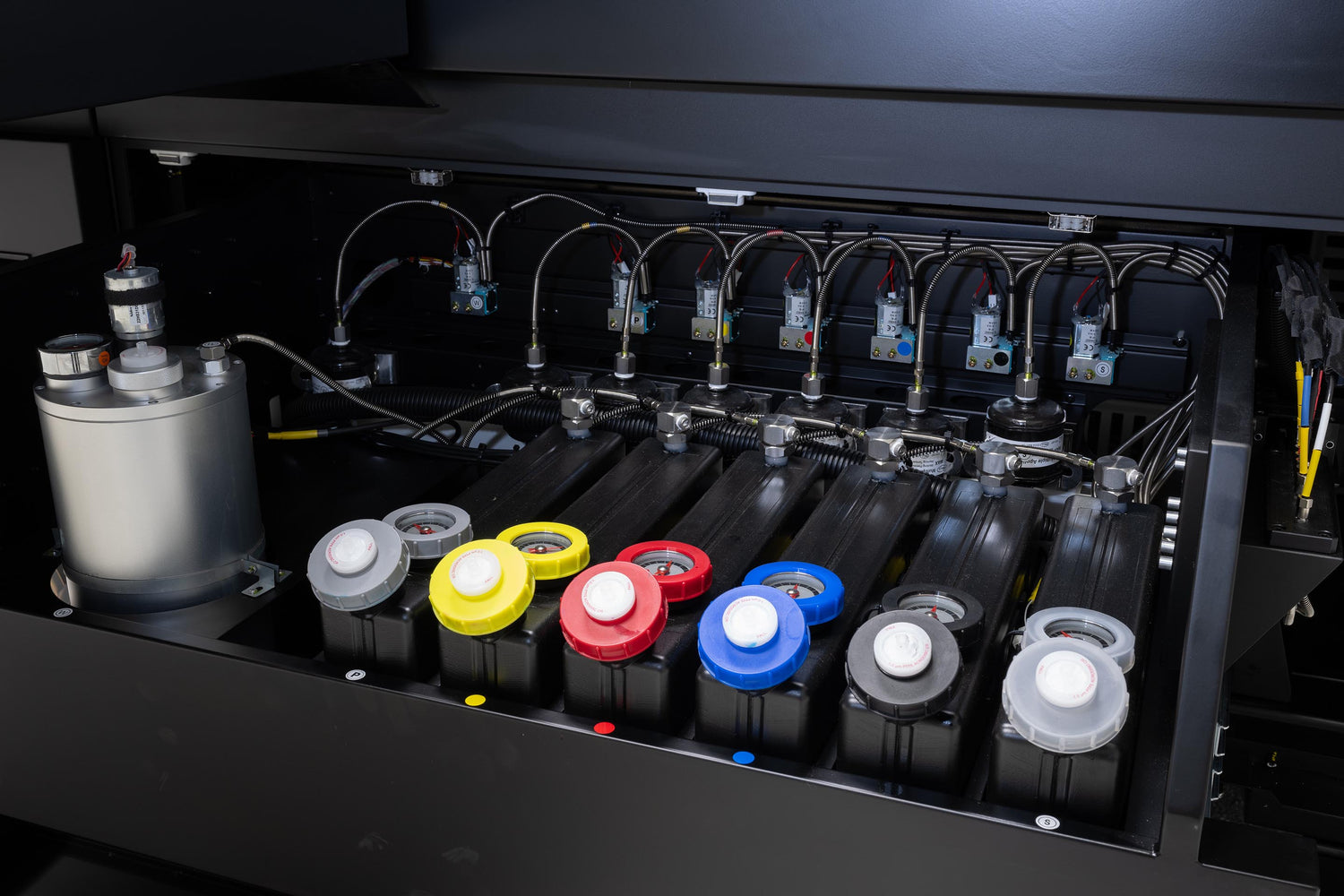

Ink Supply Pressurized + White Ink Circulating System
Ink Configuration Options
C, M, Y, K, W, W
C, M, Y, K, W, Primer
C, M, Y, K, W, Varnish
C, M, Y, K, LC, LMPrinter Weight 2,420 lbs
Shipping Weight 4,048 lbs
Shipping Dimensions 195” L x 78” W x 87”H
Environmental Condition 68~77° F; Humidity 40~60% (non-condensing)
RIP Software - Included LogoJET Edition Wasatch (1 year subscription)
or Onyx Thrive License (Level 3 Driver)Installation & Training 3-day onsite installation and training
