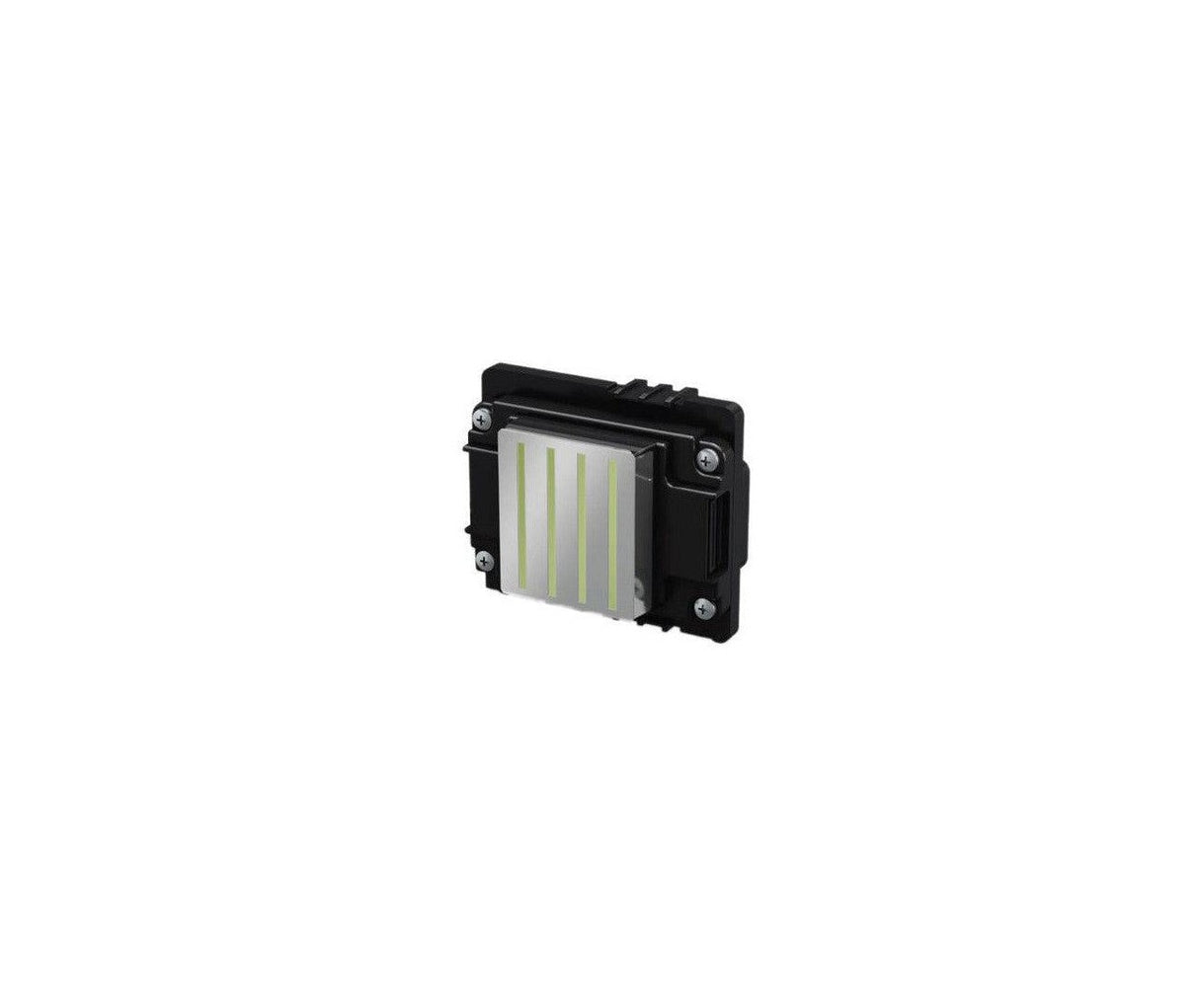

Inspira Series - EPSON i-3200 8 Channel Print Head Replacement Part for UVx45i

The Epson I3200-U1HD is the latest PrecisionCore micro FTP print head developed for printer manufacturers offering a cost-effective, 1.33-inch wide MEMs print head, delivering high productivity and exceptional image quality with a 600dpi high-density resolution.

This print head is designed specifically for use with LogoJET's Inspira inks and features 8 channels.

Please note, it is not compatible with the UVx90i model. For the UVx90i, refer to Part# I3200U1PH

• Ink Type: UV
• Type: PrecisionCore MicroTFP printhead

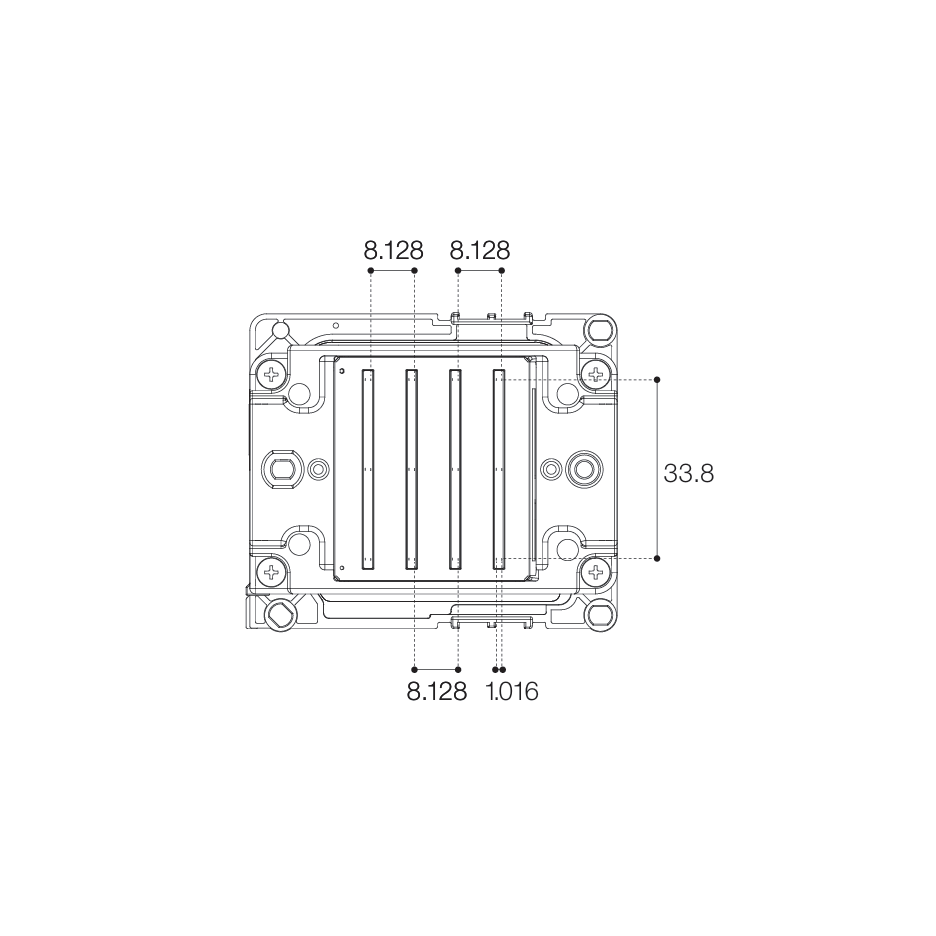

• Number of Nozzle: 3200 (400 nozzles x 8 rows)
• Nozzle pitch/nozzle row: 1/300 inch
• Nozzle rows: 8 rows
• Nozzle Resolution: 400 np
• Max. number of color inks: 8 colors
• Effective Print Width: 1.33 inches
• Viscosity Range: 5-7 mPa・s

CLICK HERE for print head brochure.
