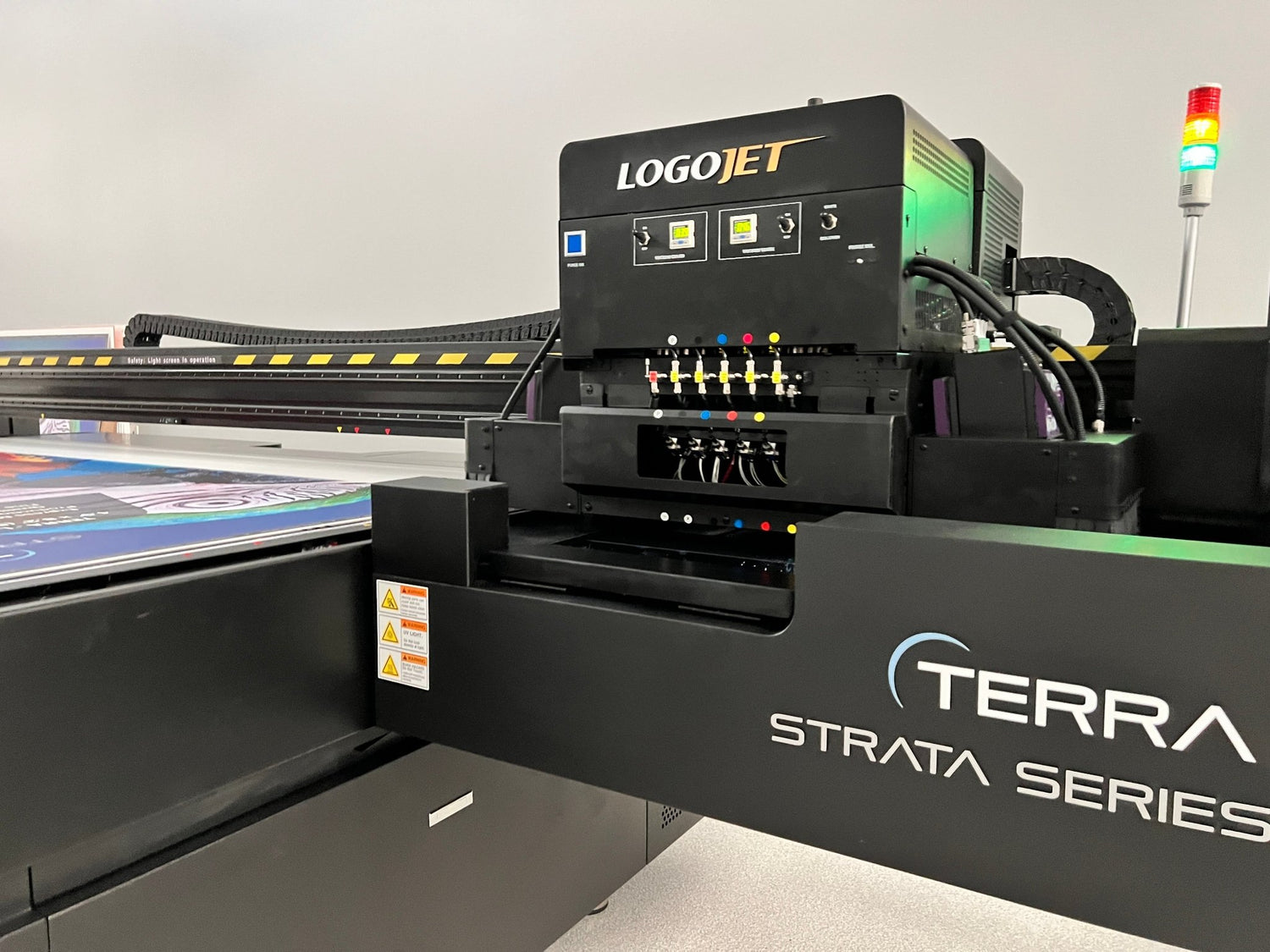

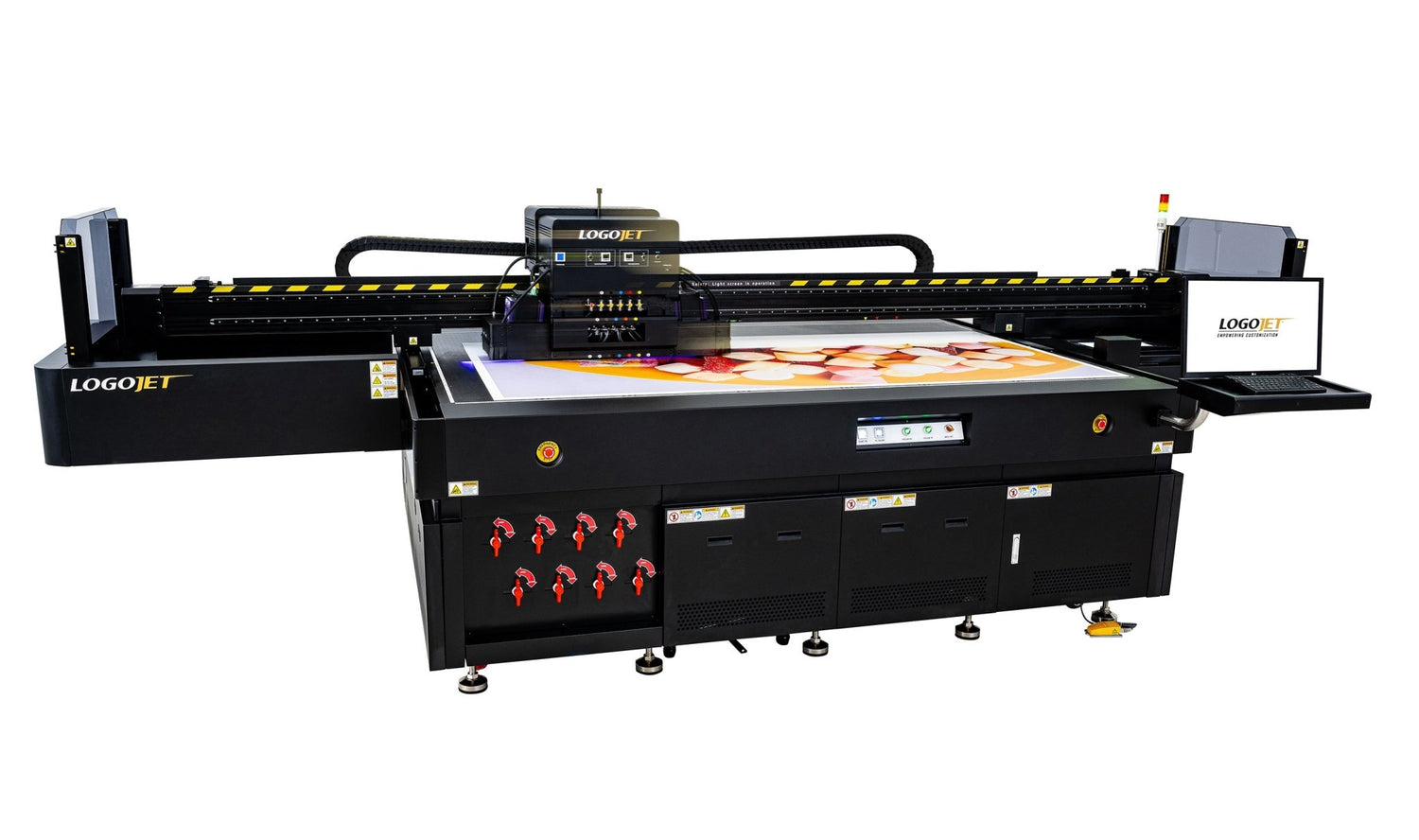

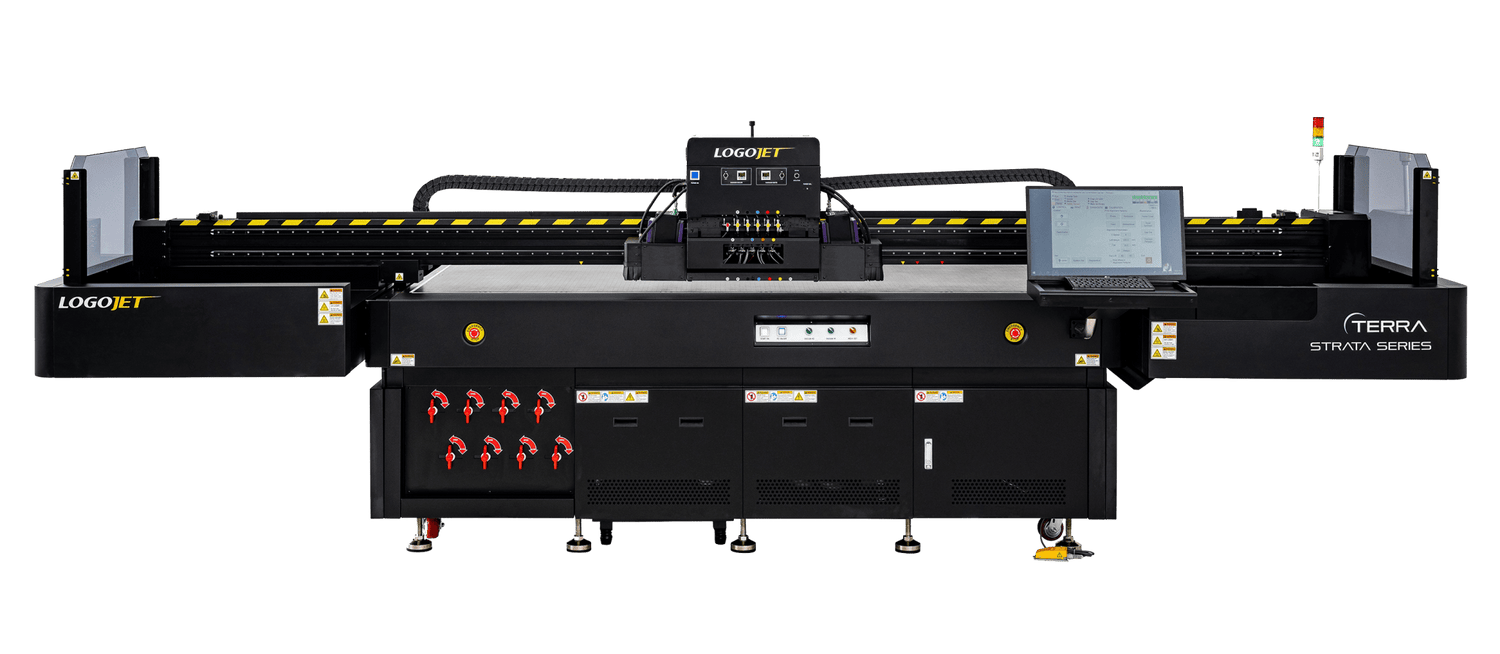

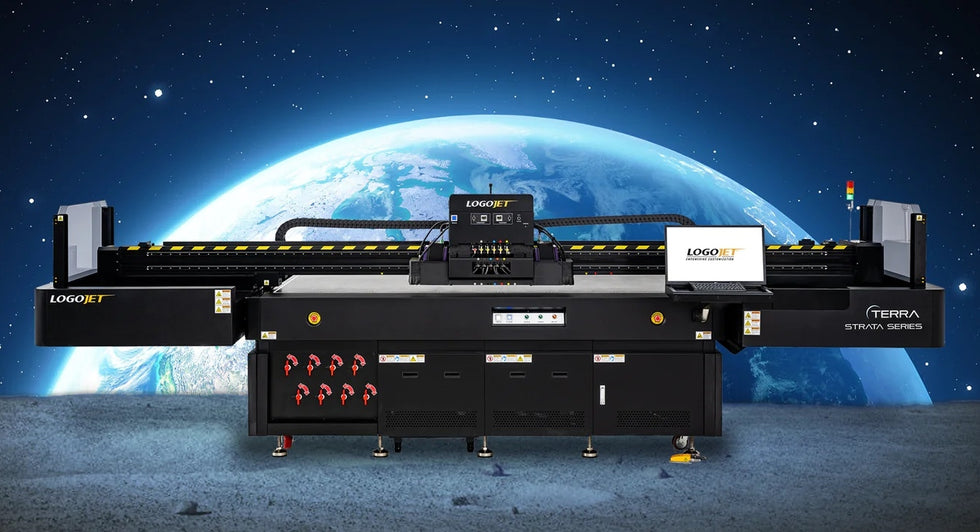

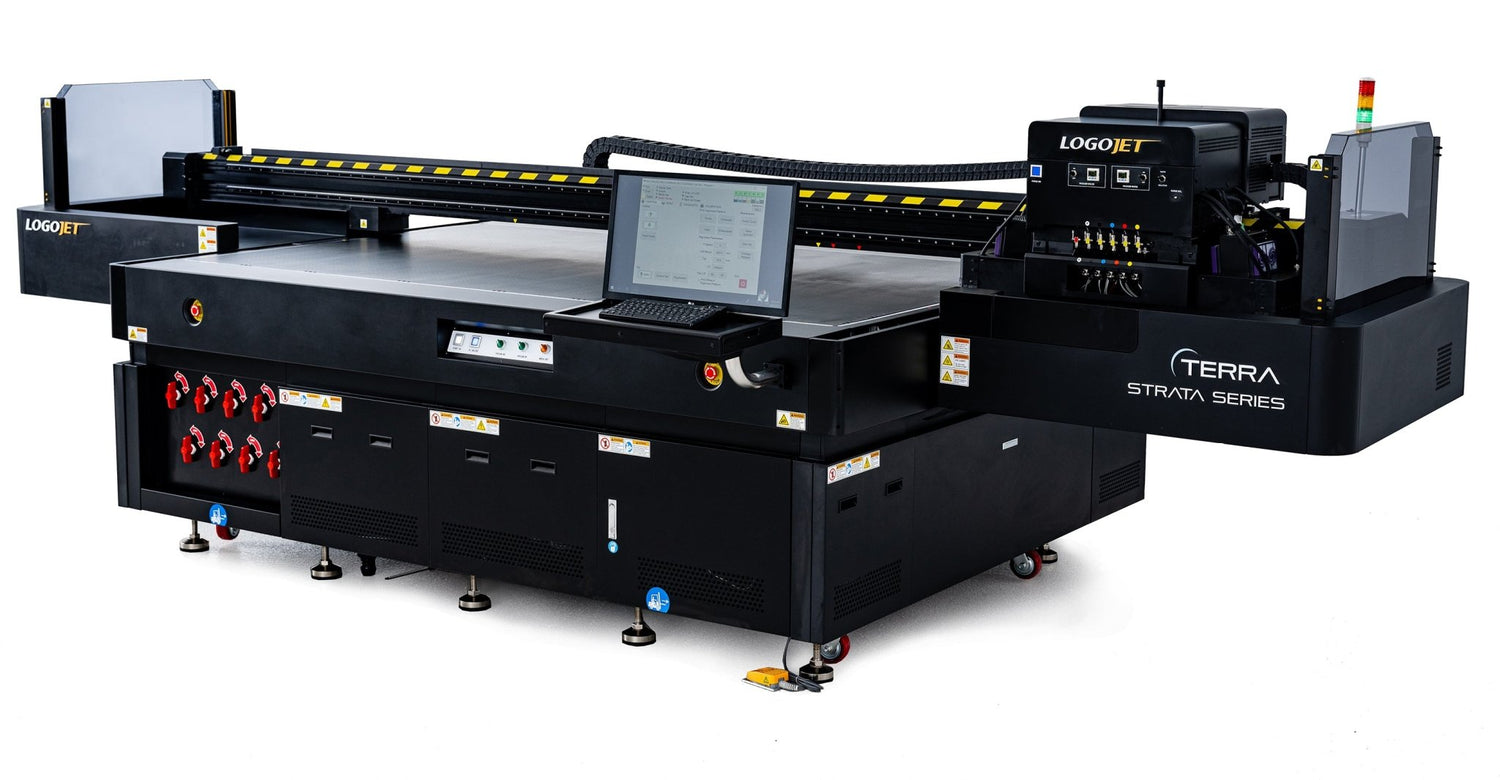

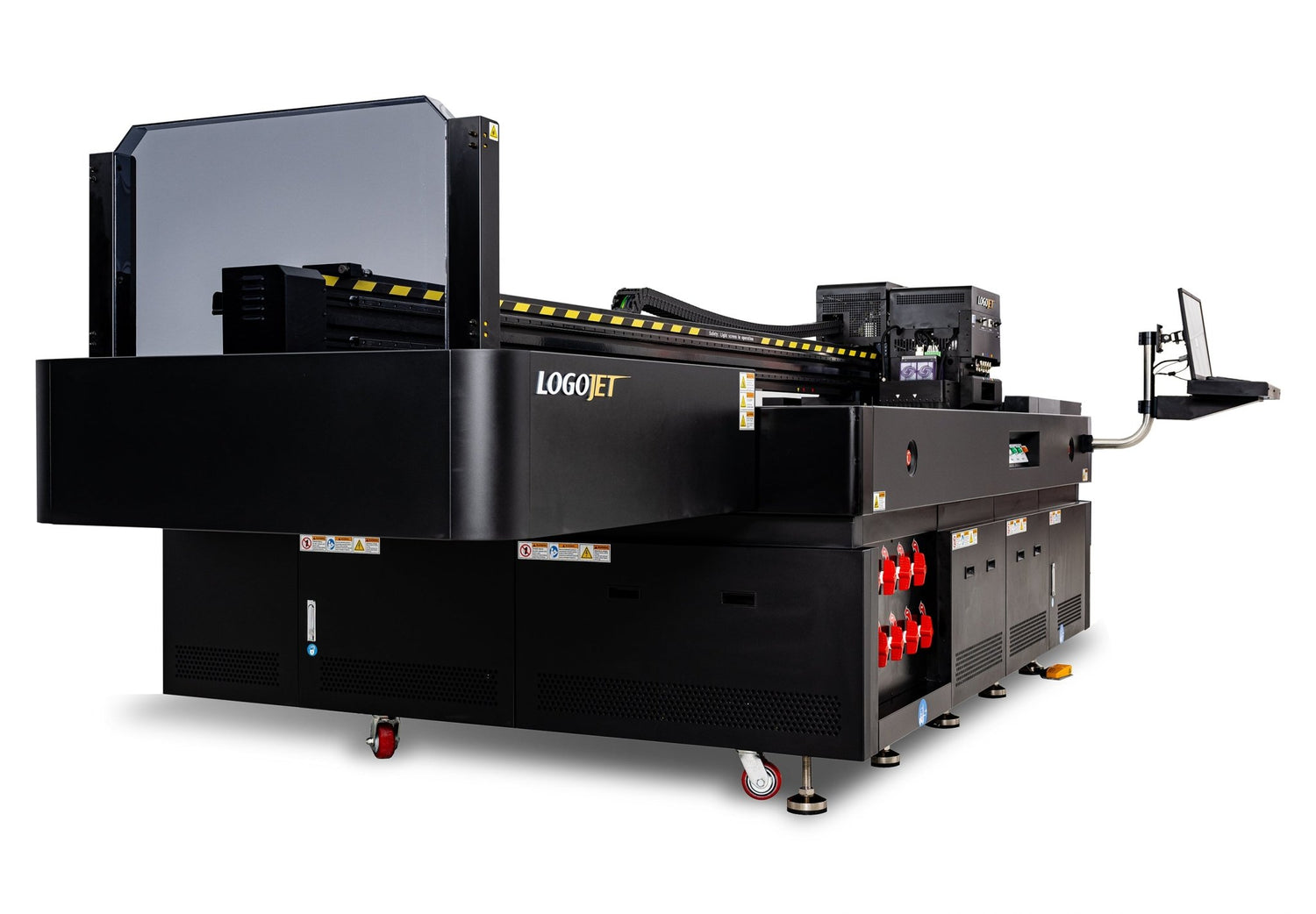

TERRA Wide Format UV Flatbed Printer

LogoJET  |  SKU: UVx25FB-04C

LogoJET Strata Series Large Format UV Flatbed 4.9' x 8.2' - TERRA (includes 2 Ink Sets)

The Future of Wide Format Printing is Here

LogoJET's new STRATA SERIES of Large Format Inkjet Printers is a game-changer for your business.

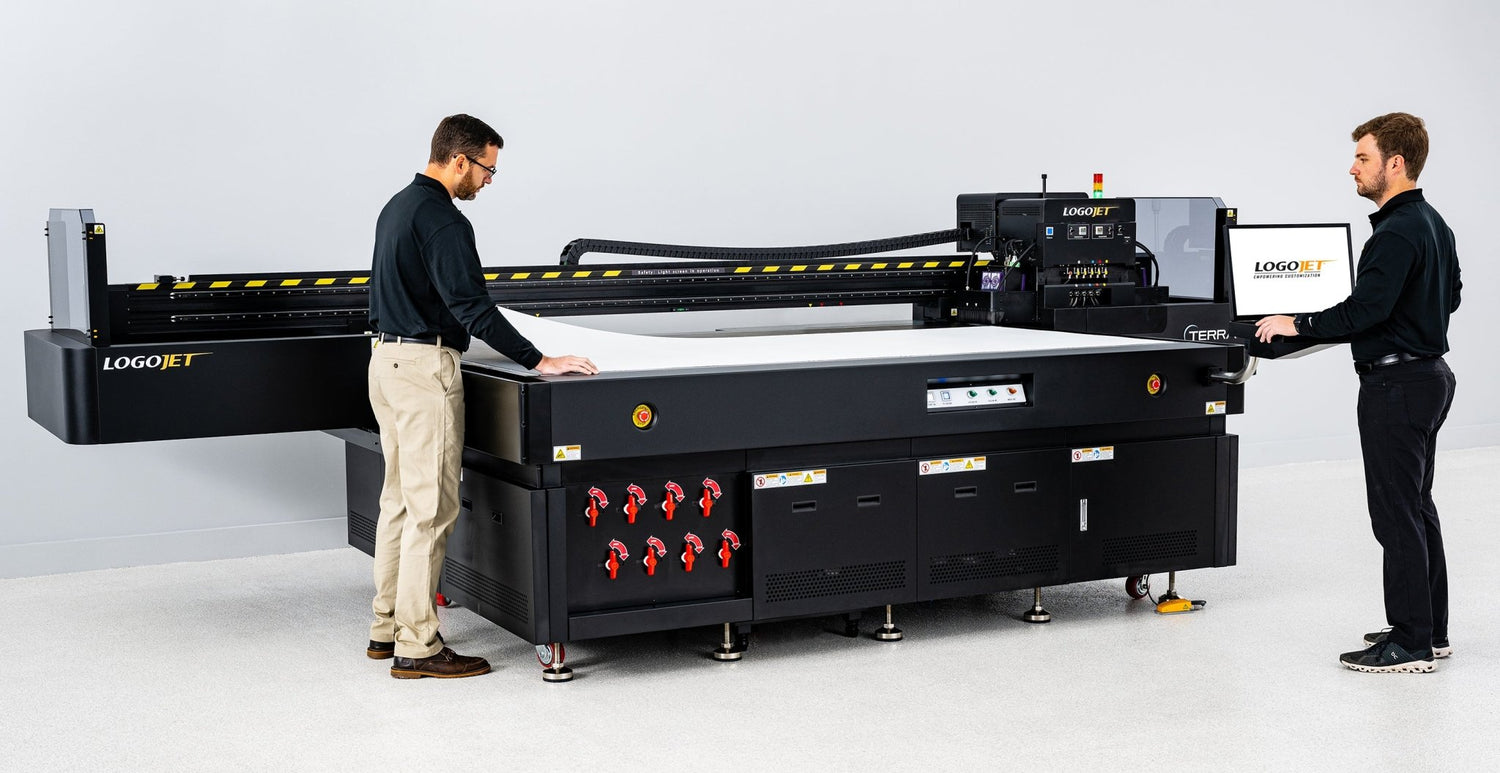

The TERRA - a state-of-the-art industrial printer - is designed to redefine the industry standards by combining cutting-edge technology with unparalleled durability to boost productivity and deliver exceptional results. Packed with robust features, speeds and reliability you can count on, and backed by LogoJET's 3 year warranty and 5 star support.

Includes 1 Year Wasatch SOFTRIP Subscription with Premium 1 Driver.

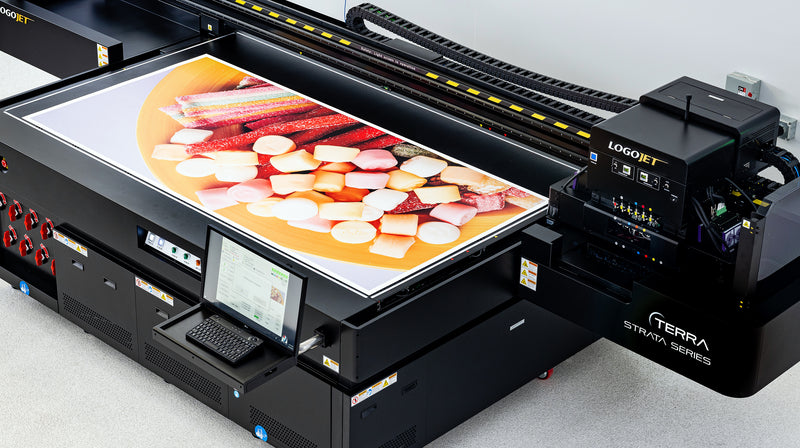

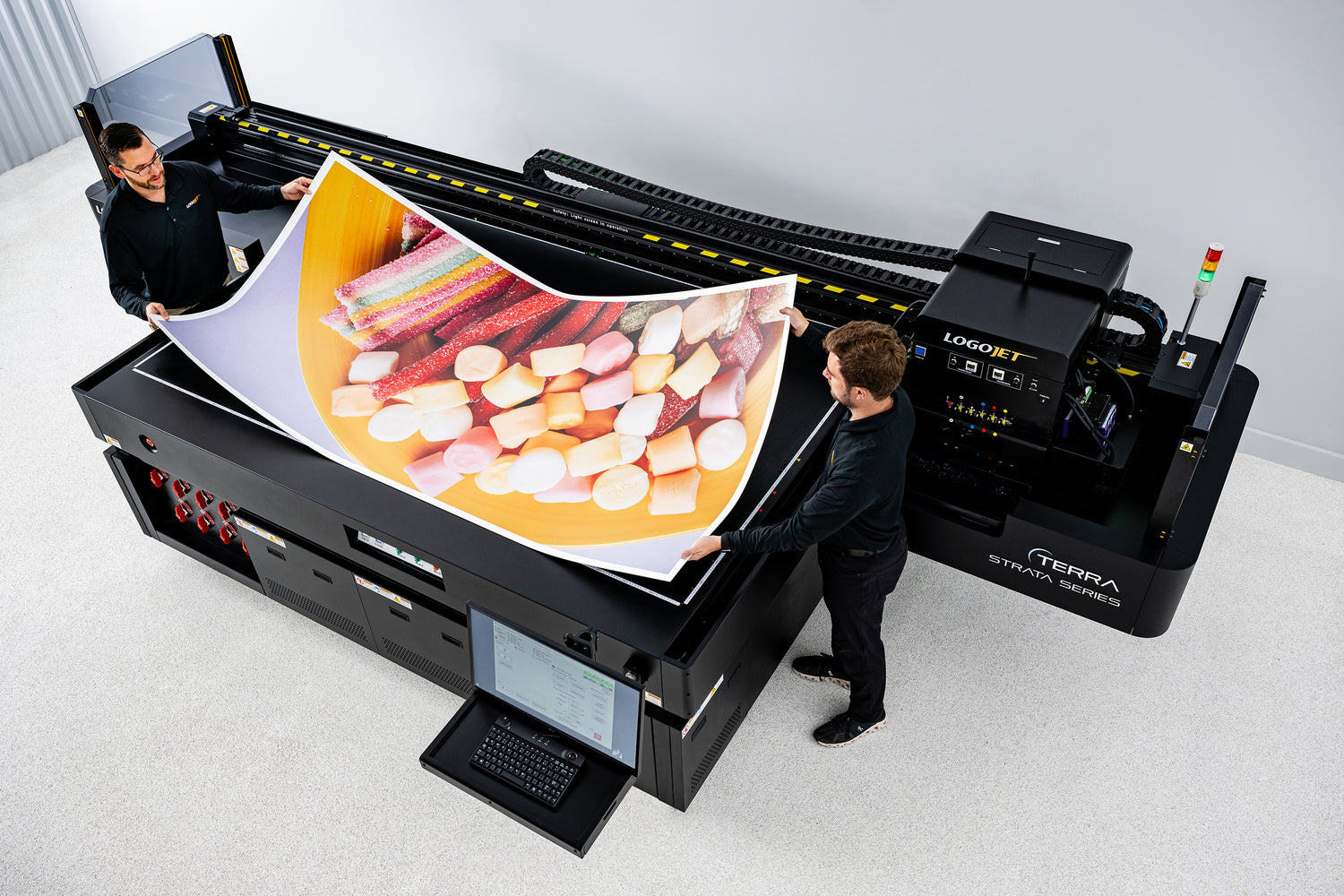

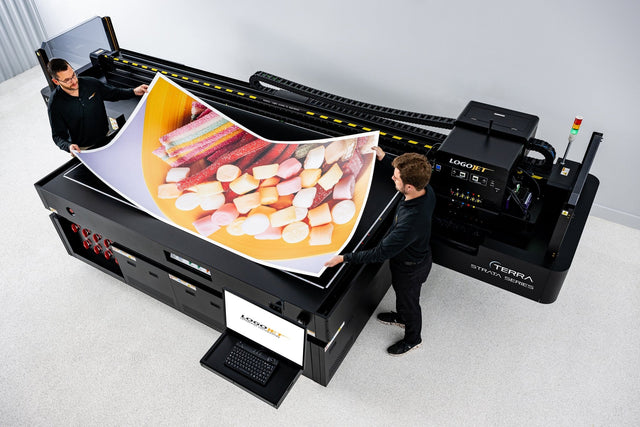

    4.9’ x 8.2’ (59” x 98”) PRINT AREA

    Multiple Ink configurations available
    C, M, Y, K
    C, M, Y, K, W, W
    C, M, Y, K, W, W, Primer
    C, M, Y, K, W, Varnish
    C, M, Y, K, LC, LM

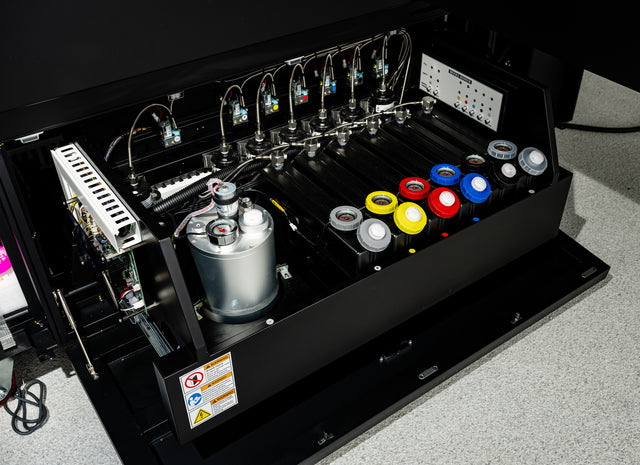

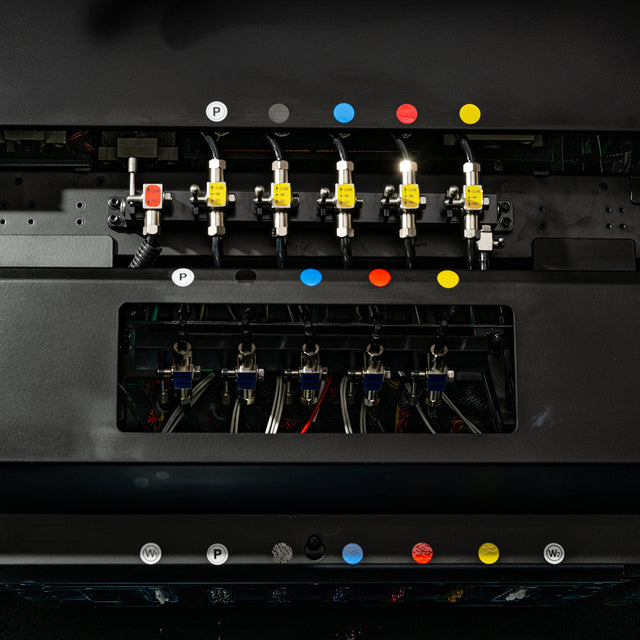

    Auto White Ink Circulation System
    Engineered to stabilize nozzle output and sustain uniform head ink distribution.

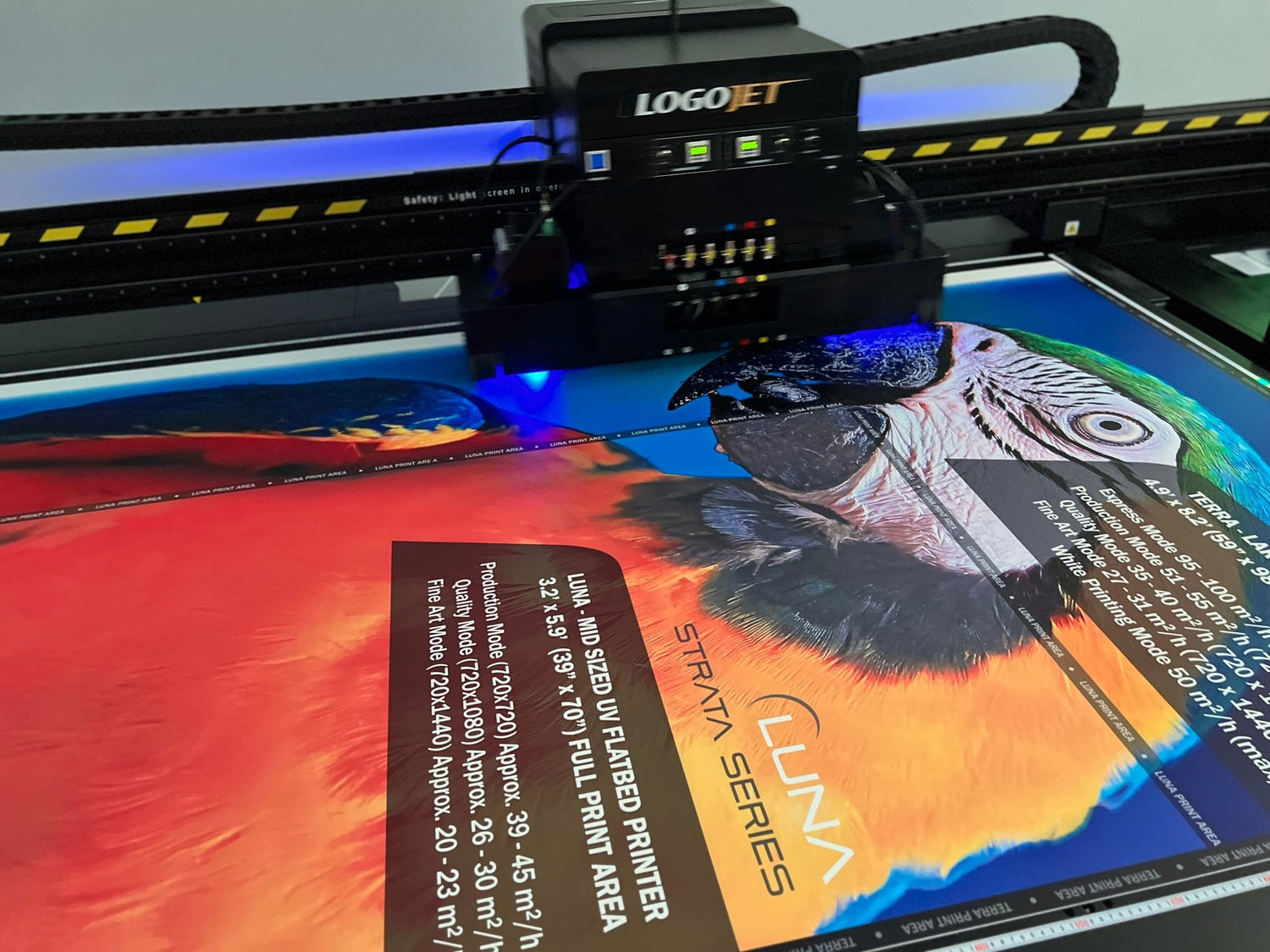

    Variable Dot Technology
    4-level variable dot design ensures consistency without hindering speed, optimized at dot variables of 6, 12, & 18 pl.

    Auto head gap-set pin out system
    Automatically adjusts to media thickness up to 3.93”

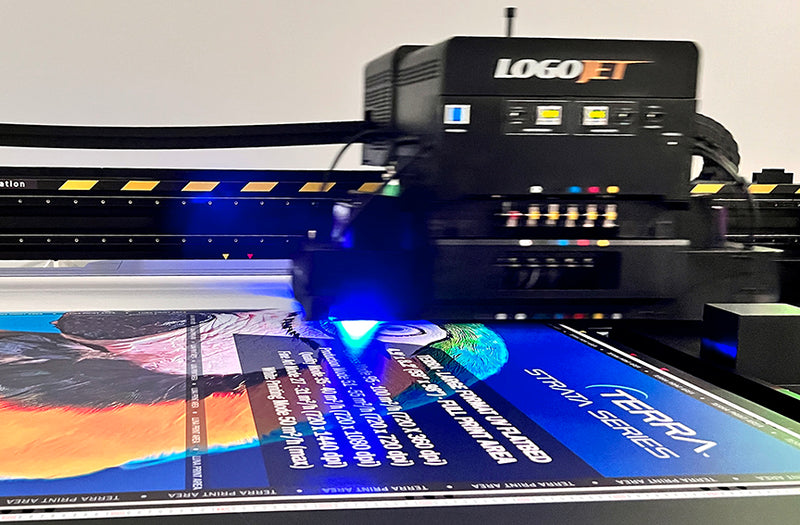

    UV Lamps
    2 built-in high powered Phoseon UV-LED lamps for high-speed bidirectional printing

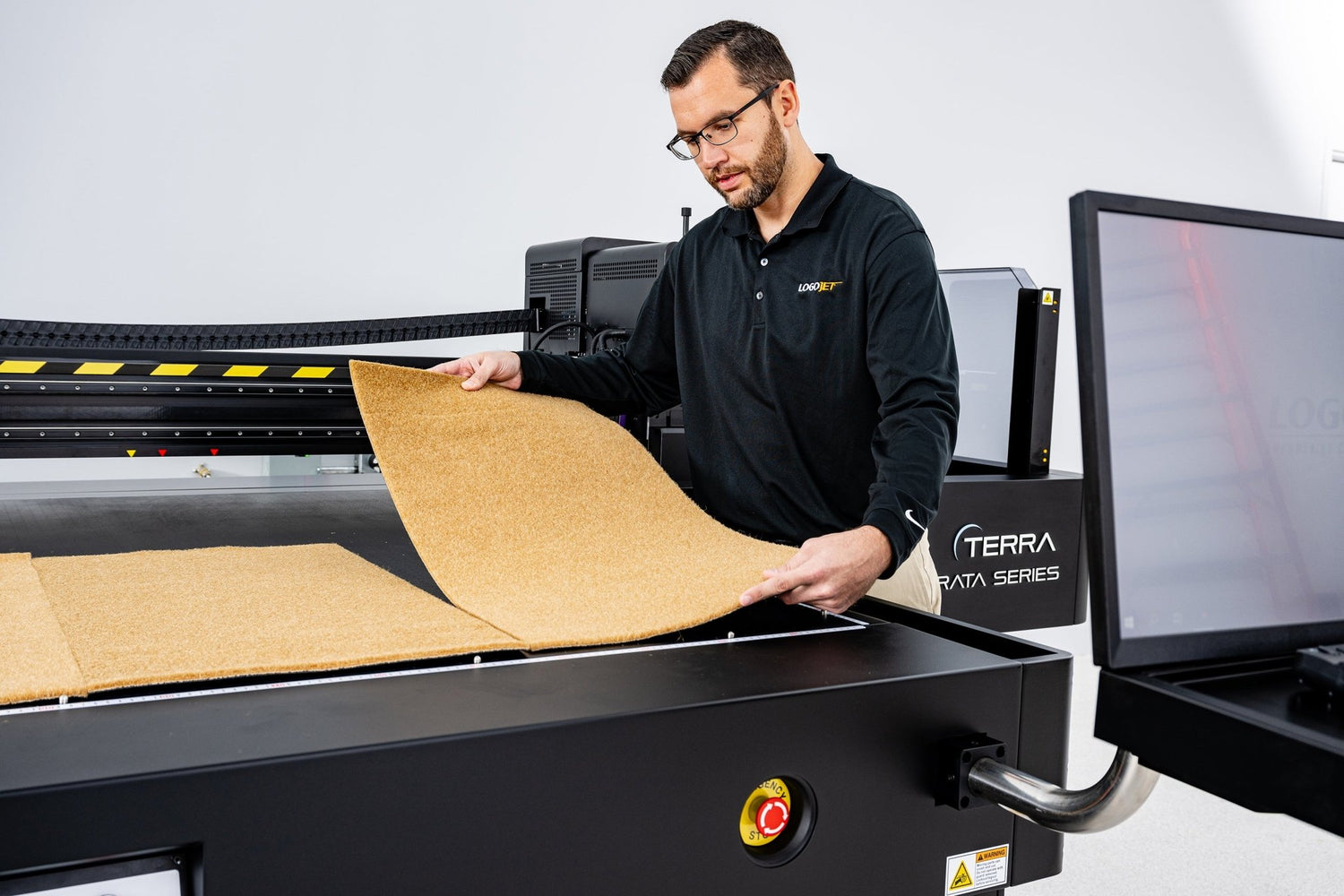

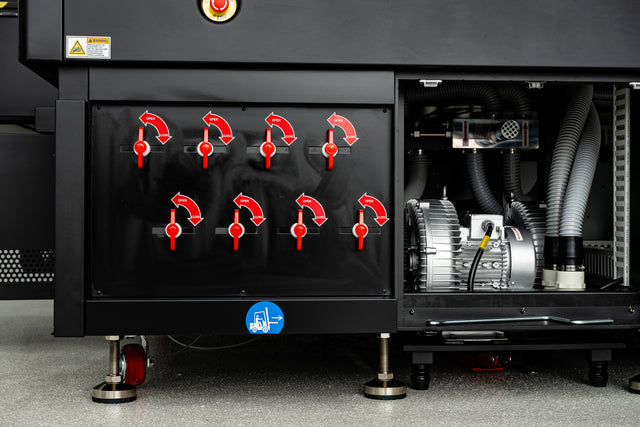

    Vacuum Bed
    Auto vacuum control system with 8 zones for holding light media and reverse vacuum mode to hover media.

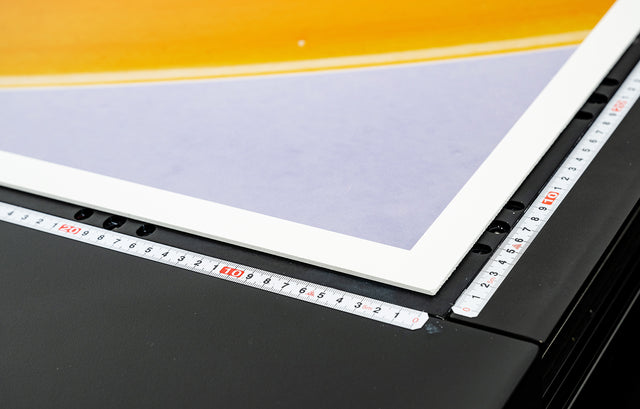

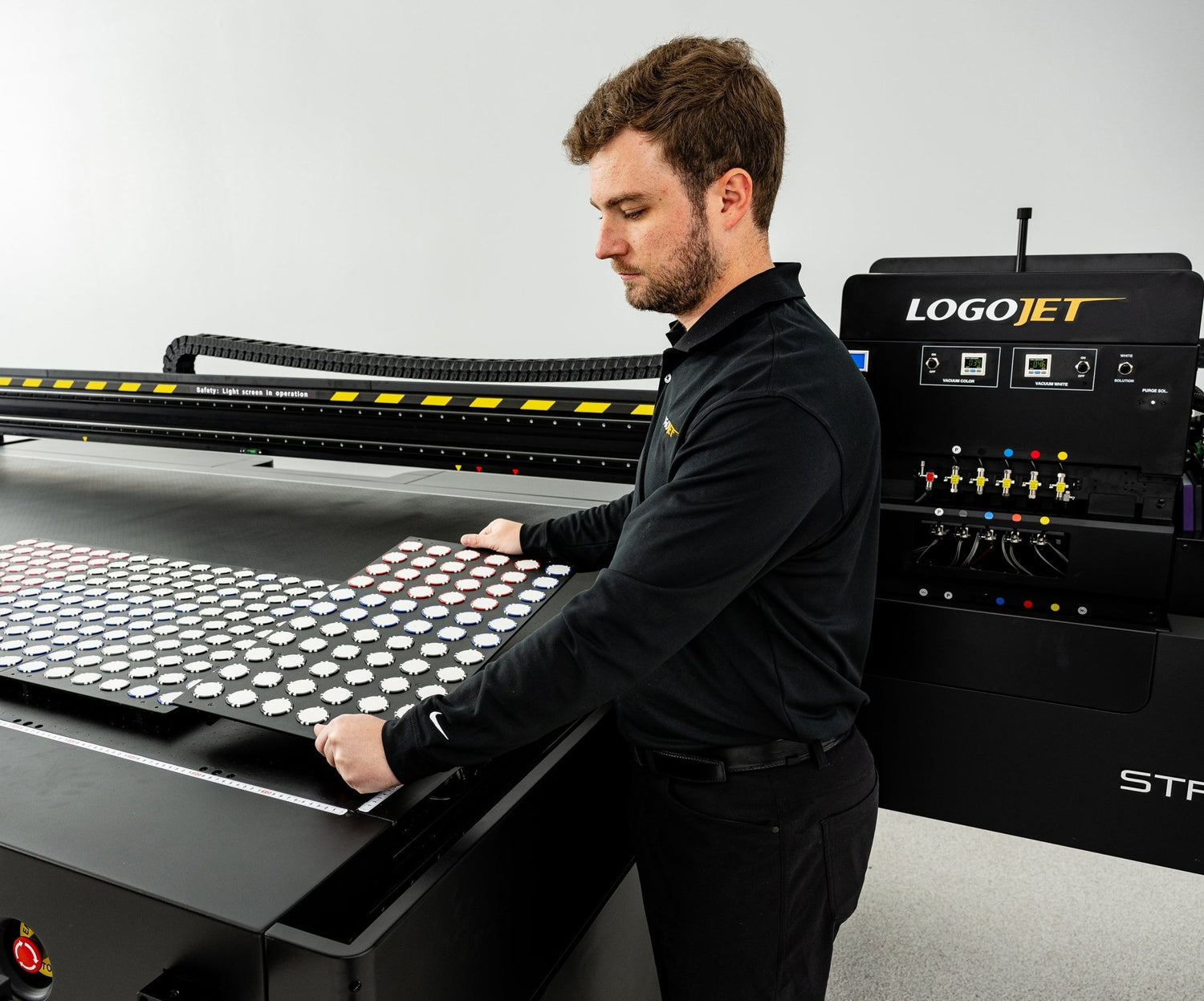

    Media Registration
    Pneumatic pin-out media set mechanism for precision alignment of materials or jigs

    Built-in Ionizer for anti-static

    Print head collision prevention system


    Includes your choice of LogoJET Edition Wasatch (1 year subscription) or Onyx Thrive License (Level 3 Driver) RIP Software.

    Tech Support

    LogoJET offers enhanced in-person installation and personalized training for you and your staff with your purchase. We also offer a 3-YEAR WARRANTY to give you peace of mind. We pride ourselves on our top-notch technical support provided by industry experts who can provide troubleshooting and ongoing training for your business.


    Payments as low as $3,651.94/mo 60 month term


    Strata Series Printers Launched at Printing United Expo in 2023

    • What's Included

      Each printer is shipped with the following:

      2 x 1 liter ink bottles C M Y K

      2 x 900 mL ink bottles White

      1 x bag of gloves and maintenance syringes

      1 x mini supply of lubricants for greasing the rails and tracks

      1 x bag – lint free wipes for print head maintenance

      1 x printed manual binder

      1 x installation USB for drivers and other videos

      1 x RIP Software 1 year subscription (Wasatch or Onyx)

      1 x anti-static brush

      1 x power cable

      3-Year limited warranty* (excludes print heads)

    • Specifications

      Warranty 3 Year Limited Warranty

      Max. Curable Imprint Area 4.9’ L x 8.2’ W (59” L x 98” W)

      Max. Substrate Height 3.93” H

      Max. Substrate Weight 220 lbs (5.48 psf)

      Machine Size 209” W x 110” L x 71” H

      Print Heads Konica Minolta KM1024

      Built-in Vacuum Bed 8 zone, 141 CFM

      Power Source 220V, 60 Hz - Single Phase, 30A

      Compressed Air Requirements 100 psi

      Power Consumption 6KW

      UV Lamp (2) Specs 2 x 395nm air cooled 16 Watt/cm²
      UV LED lamps (Phoseon)

      Built-in PC Dual-Core i7 Processor, 64 bit, 1TB SDD
      8GB RAM, Windows 10

      Control Panel Touch Screen, built in PC

      Interface Ethernet

      Optimized Resolution 720x360, 720x720, 720x1080,
      720x1440 dpi (uni + bi available)

      Consumable Parts Print heads, pump, filters for UV lamp

      Ink Process (standard) CMYK + 2 custom channels

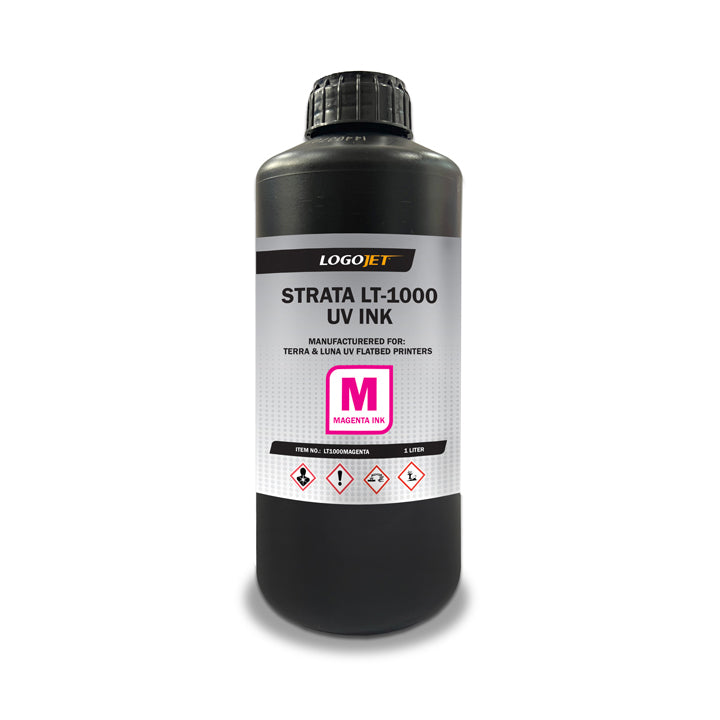

      Ink Type UV LED, ST1000 Strata Series

      Ink Supply Pressurized + White Ink Circulating System

      Ink Configuration Options
      C, M, Y, K
      C, M, Y, K, W, W
      C, M, Y, K, W, W, Primer
      C, M, Y, K, W, Varnish
      C, M, Y, K, LC, LM

      Printer Weight 4,188 lbs

      Shipping Weight 6,217 lbs

      Shipping Dimensions 228” L x 90” W x 82” H

      Environmental Condition 68~77° F; Humidity 40~60% (non-condensing)

      RIP Software - Included LogoJET Edition Wasatch (1 year subscription)
      or Onyx Thrive License (Level 3 Driver)

      Installation & Training 3-day onsite installation and training
