UVx40R PLUS-SE Direct to Substrate Printer

LogoJET  |  SKU: UVX40RPLSE

LogoJET UVx40R PLUS-SE Tabletop UV Direct to Substrate Printer

$29,995.00

The LogoJET UVx40R PLUS-SE (speed-enhanced) tabletop printer has expanded on our award-winning design by including a fourth print head and an expanded imprint size of 18” x 24” for 33% more print area than our UVx40R-SE model! The added print head enhances white ink opacity and clear gloss options, and the bed size is ideal for printing yard signs. LogoJET’s number-one seller combines industrial-strength components with extended-wear print heads to bring you a powerful and efficient UV-LED printer with a larger capacity, while maintaining a compact size.

  • 18” W x 24” L Imprint Area
  • CMYK + White + Clear Gloss Ink
  • Dual CMYK option for increased speeds
  • Automatic Product Height Sensor - up to 5" H
  • Built-in vacuum bed
  • Rotary 360° Printing Capability
  • Speed-Enhanced Bi-directional printing
  • Award-Winning Ink & RIP Software

Features

4 Ricoh GH2220 Precision Print Heads

Each industrial print head accommodates two ink channels, for a total of 8 customizable channels, designed for cost-efficient head replacement.

Speed Enhanced

Up to 20% increased throughput over previous model.

Optimized Ink Flow System

Our ink bag system moves with the carriage during printing to create optimal ink flow and minimized maintenance.

Built-In UV-LED Lamp

Cures the ink instantly as it’s applied to the substrate for vibrant and lasting imprints.

Expanded Curable Imprint Area

18”W x 24”L bed size offers 33% more print area than the UVx40R-SE. The automatic height sensor detects products up to 5” in height and positions them at an optimal distance from the print head.

Interchangeable Printing Trays

The tray rail system allows for custom trays to be easily loaded and unloaded onto the print bed. Custom trays improve accuracy of product placement as well as production flow.

Control Panel

Puts your most used functions at your fingertips:
- head-cleanings and nozzle checks
- manual and automatic flatbed height adjustment
- move the bed backward and forward

Material handling

The built-in vacuum bed and multi-use sticky mat keep substrates in place while printing.

Open Architecture

While other printers in the industry require professionals for parts replacement, LogoJET’s easily accessible architecture and design make maintenance a breeze. You don’t have to be a tech guru to keep your printer up and running.

Rotary 360°

Allows for customization around the circumference of cylindrical and tapered objects.

Software

LogoJETPrint Pro ™ –  powered by Kothari, was designed to not only provide powerful RIP functionality, but also the features critical to full print production workflows.  Main features:

● Hot folders with pre-configured print parameters for specific substrates to simplify job setup.

● Independent channel layering for inline printing and textured effects – up to 8 layers in one job.

● Advanced Head Control produces fine detail in small imprint areas. On rotary jobs, print items with diameters as thin as drumsticks up to 4” bottles.

● Multiple Image Masking crops art to fit multiple shapes in a single layout.

● Saved environments to simplify production on various media.

● Templates for repeatability in production.

● Optional add ons to provide full production solutions:
- Name Color Space–for advanced color management
- VDP–Variable Data Printing for serialization requirements
- Workflow Express–for queue-based job setup

Tech Support

LogoJET offers enhanced remote installation and personalized training for you and your staff with your purchase. We also offer a 3-YEAR WARRANTY to give you peace of mind. We pride ourselves on our top-notch technical support provided by industry experts who can provide troubleshooting and ongoing training for your business via phone, email, online chat or video conference. Customers also have options to enroll in Service Level Agreements (SLAs) and Priority Support.

APPLY FOR FINANCING

Payments as low as $615.39/mo 60 month term

UVx40R PLUS-SE Features

Award-winning H2 UV Curable Inks

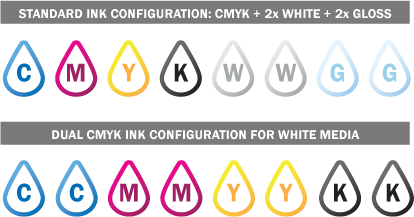

Our award-winning H2 UV curable inks provide increased color gamut, durability and flexibility. The chip-free ink bags move along with the carriage during printing to improve ink flow and reduce maintenance. The ink bag system allows for easy, mess-free replacement. The eight ink channels can be customized with a combination of CMYK inks, white ink and/or clear gloss to suit your needs. The standard configuration includes CMYK + 2x White + 2x Gloss channels, however a Dual CMYK configuration is available for white/light colored media applications which can provide a huge increase in print speeds. Our print specialists can help determine the best configuration for you.

Why is the UVx40R PLUS-SE Right For You?

  • What's Included

    Each printer is shipped with the following:

    1 x INK BAG SET 8 colors, CMYK, 2 W, 2 CG; 220mL each

    1 x bag of gloves and maintenance syringes

    1 x mini supply of lubricants for greasing the rails and tracks

    1 x bag of lint free wipes

    1 x printed manual

    1 x installation USB for drivers and other videos

    1 x LogoJET Print Pro™ powered by Kothari

    1 x anti-static brush

    1 x power cable

    1 x spare dampers set

    1 x USB printer cable

    1 x webcam

    1 x consumable parts adjustment tool kit

    Built-in LCD panel display with touch-button controls

    3-Year limited Warranty

  • Specifications

    Actual Flatbed Size 18.5”W x 30”L*

    Max. Curable Imprint Area 18” W x 24” L

    Max. Substrate Height 5” H

    Max. Substrate Weight 22 lbs

    Machine Size 49.5” L x 35” W x 28.5” H

    UV Lamp Specs 395nm, 48V

    Print Head 4x Ricoh GH2220

    Options 360° rotary attachment, custom trays

    Built-in Vacuum Bed Holds down flat, lightweight materials

    Power Source 100~120V AC, 50/60Hz or 210~230V AC, 50/60Hz; 660W

    Control Panel 13-button interface

    Warranty 3-Year Limited**

    Consumable Parts Cap tops, ink, dampers, lamp filters, ink tubes

    Interface USB 2.0 Interface (1x)

    Ink Process CMYK + 4 custom channels (white & gloss)

    Ink Type H2 UV curable ink

    Ink Supply Vacuum-sealed ink bags – 220 mL

    Optimized Resolution 720x600, 720x900, 720x1200, 720x1800, 720x2400 dpi

    System Requirements (PC) Multi-core CPU, 16GB RAM, 1TB HDD or SDD, Windows 11

    Printer Weight 330 lbs

    Shipping Weight 550 lbs

    Shipping Dimensions 56” L x 44” W x 39” H

    Environmental Condition 68~77° F; Humidity 35~70% (non-condensing)

    RIP Software LogoJET Print Pro powered by Kothari

    Installation Remote included, onsite optional

    *includes extension for rotary printing and open-ended for product overhang

    **refer to limited warranty details
